RNZ Pacific has one transmitter – a 100kw digital capable (DRM) short-wave transmitter. We have retired our original 100kw analogue transmitter. It is now used for backup in the event of a fault in the main transmitter.

Adrian Sainsbury

Technical Manager Adrian Sainsbury

Our transmission site is at Rangitaiki, 41km east of Taupo in the centre of the North Island of New Zealand. The coordinates are 176 25’ 47.02” E  and 38 50’ 33.35” S. Audio is fed to the transmitters by a digital link from the studios in Wellington, 400km south of Taupo. The transmission operation includes a control and telemetry system operating through a standard RS232 computer port. The site is unmanned and is controlled from our studio in Radio New Zealand House, Wellington.

The Thomson Broadcast and Multimedia digital capable transmitter was installed in 2005. It is used to provide a studio quality DRM signal for relay by local Pacific radio stations.

The analogue transmitter was manufactured by Thompson CSF of France and installed in 1990. It is now only used for backup. It has an output power of 100kw and is equipped with three transmitting tubes; 2 x TH581 with hypervapotron cooling and one TH581 with air cooling.

Our studios are located in Wellington. At the start of 2000 we moved to a digital presentation system for all programme making and broadcast tasks.

RNZ Pacific Antenna

We operate two high frequency and two low band antennae manufactured by TCI of California. One of each beams 35 degrees and one of each beams 325 degrees. They can be driven individually, or when fed in parallel the beam widens to 140 degrees.

HR 2/4/0.5 is a five band curtain antenna with a frequency range of 9.5 to 17.9MHz.

It consists of 8 folded dipoles arranged in two columns of four dipoles. The average angle of elevation is 10 degrees and the gain is 17db at 9 MHz which gives an ERP of two megawatts rising to 20 db at 17MHz which gives an ERP of five megawatts in broad terms. In March 1993 the low frequency antenna was installed.

HR 2/2/1 is a four band dipole curtain antenna with a frequency range of 5.95 to 12.05 MHz.

It consists of four dipoles arranged in two columns of two dipoles. The average take-off angle is 12 degrees with a gain of 16 db at 6 MHz increasing to 19 db at 12 MHz. The antennas are fed with 300 ohm open line feeders with a complex matching and switching system.

A large reflecting mesh forms a backdrop to each antenna array and the tension on the dipoles is maintained with a system of pulleys and counterweights.

The 35 degree beam covers the South Eastern Pacific, and North America. The 325 degree beam covers the South Western Pacific, NE Australia, Japan, China and Europe.

With the antennae combined, virtually all the Pacific Basin is covered.

Gallery: Radio New Zealand International's broadcast equipment

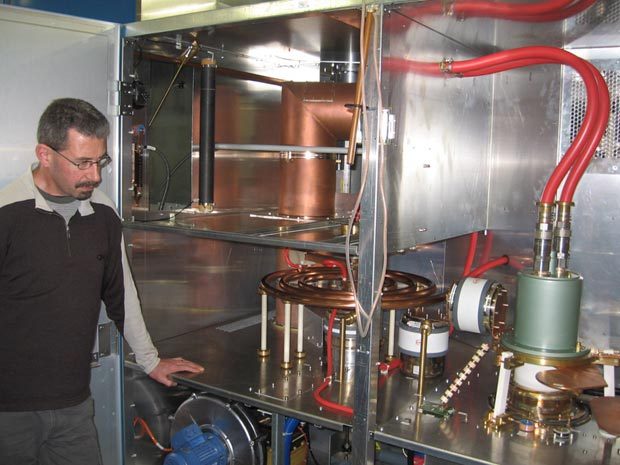

Transmission Engineer Andy Anderson shows off a high power water cooled valve, water cooled inductors and capacitors
